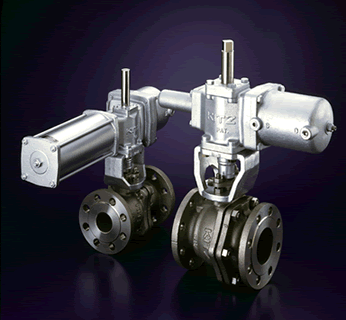

KITZ's highly reliable B-type actuators are available in double action and spring return models for use in small and large diameter applications.
B-type actuators can be fitted with a wide variety of options to meet our customers' industrial actuator needs.

At the moment the air is discharged to the atmosphere through the solenoid valve, the spring force pushes the piston to the reverse direction, and the scotch-yoke activates clockwise rotation of the shaft to reversely operate the valve. Air failure will cause the valve return to the original open or closed position automatically, following the preset mode, unlike the valve driven by Type B actuator. The BSW actuator is driven with the same mechanism as Type BS, but provided with a handwheel for manual operation. Please beaar it in mind that the handwheel must be factory mounted.

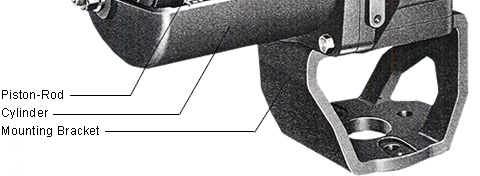

The air pressure supplied into the cylinder pushes the piston out ward and energizes its movement to rotate the scotch-yoke counter-clockwise, compressing the spring. The scotch-yoke converts linear movement of the piston rod to counter-clockwise rotational movement of the drive shaft by 90 , to open or close the valve, following the preset mode.

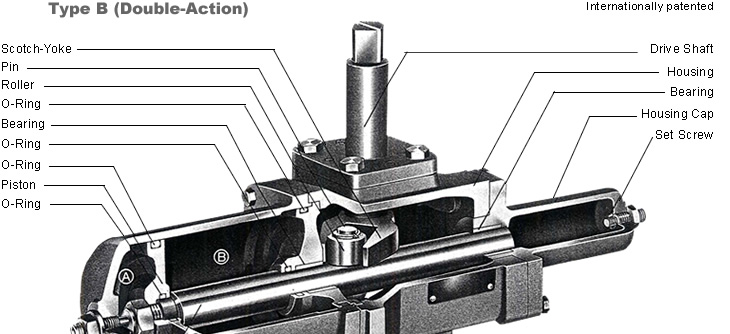

The air pressure supplied into the cylinder (A) pushes the piston outward and energizes its movement to rotate the scotch-yoke counter-clockwise. The scotch-yoke converts linear movement of the piston rod to counter-clockwise rotational movement of the drive shaft by 90° to open or close the valve, following the preset mode.
Reverse supply of the air pressure into the cylinder (B) activates the reverse valve operation. Air failure will cause the valve stay at the position where the operation was disturbed, unlike the valve driven by Type BS or BSW actuator.

NOTE:
For manual valve operation, a lever is mounted on the top end of the drive shaft of Type B-1 through B-4 actuators. Separate manual operators are available for Type B-5 and B-6 actuators.
